    What is Solid Panel？

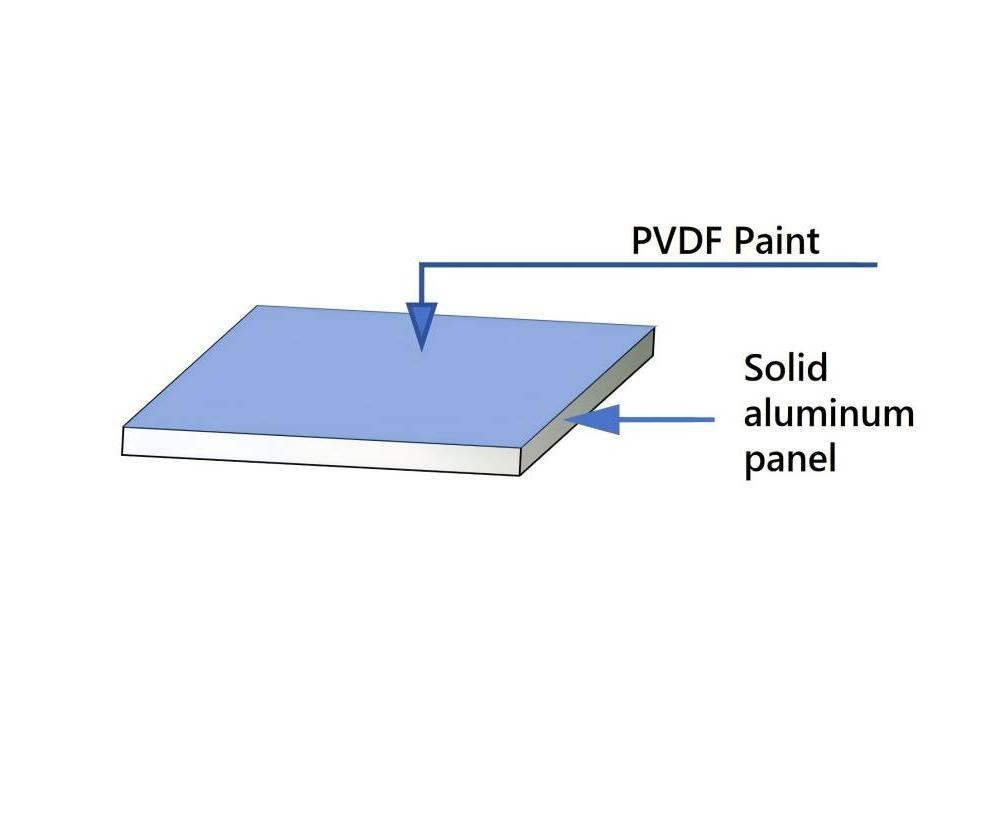

    SOLID PANEL — A1 Fire-Rated · Strong · Seamless Aluminium Panel

    • SOLID PANEL is a 2–6 mm aluminium panel with an A1 non-combustible fire rating, designed as a durable complement to ACP panels and ACM sheets.
    • Available as flat PVDF-coated panels or fabricated powder-coated panels, it offers smooth color consistency, excellent formability, and superior strength for façades, curtain walls, and high-rise buildings.
    • A reliable choice for projects demanding maximum fire safety, rigidity, and modern appearance.
    Request A Quote Send Mail WhatsApp

    Products Parameter

    Item Products Specification Dimentional Tolerence
    Thickness 2, 3, 4, 6mm ±0.2 mm
    Width 1250mm，1500mm ±2 mm
    Length 2000mm~6800mm ±3mm ~ ±5mm
    Surface Finish PVDF/Powder /

    COLOURS & SURFACES

    More colours and surfaces are available upon request

    Surface Finish
  • PVDF
  • POWDER
    • Color selection
  • Dozens of standard regular colors
  • Accept custom new colors and gloss
  • Keep the color consistent in multiple batches.

    • TECHNICAL DATA

    Item Test Items Specification of 3 mm
    Basic parameter Weight 8kg/m2
    Technical properties Alloy / Temper of
    Aluminium Layers     		3003/5005/5052
    H22 / H42
    Linear Thermal Expansion 2.4 mm/m at 100 K temperature difference
    Surface finish Paint PVDF, POWDER SPRAY
    Test accord to... Fire Classification
    EN 13501-1 Class A1-s1, d0

    Downloads
